40T Capacity Adjustable Turning Rolls

The HGK series adjustable turning rolls has two synchronously operating drive units which arrange for a continuous rotation with frequency convension stepless speed controlling.

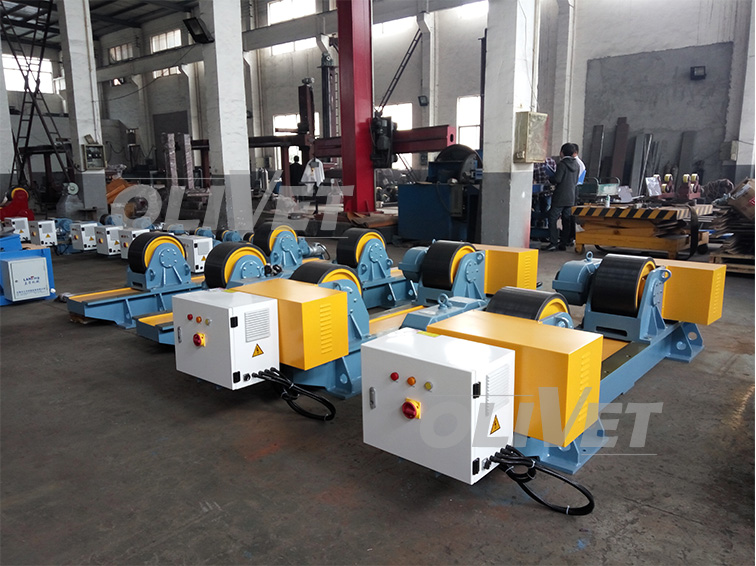

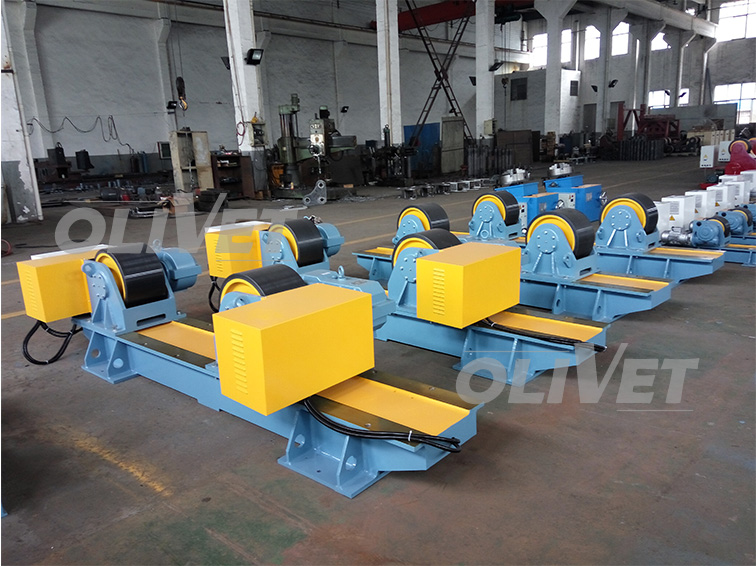

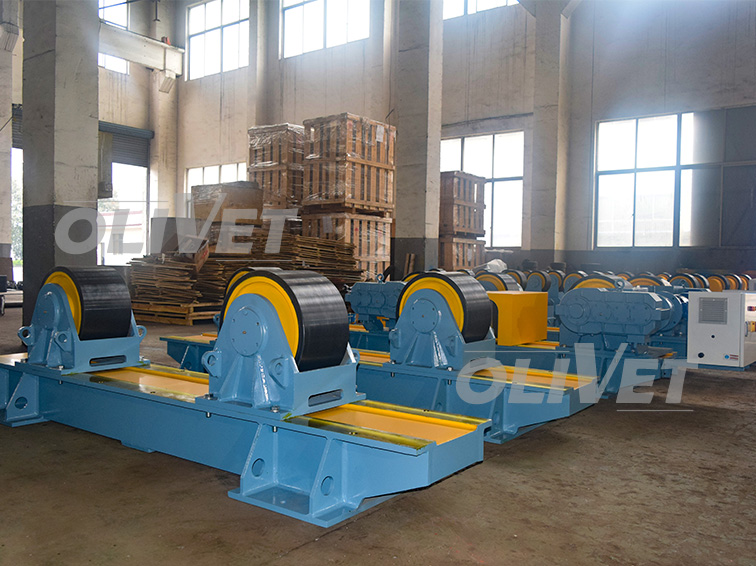

Adjustable Turning Rolls - HGK Series

Stable Rotating Process

The HGK series adjustable turning rolls has two synchronously operating drive units which arrange for a continuous rotation with frequency convension stepless speed controlling. A hand held, low voltage control pendant on a 10-metre cable provides the operator with full control of the rotator including a potentiometer for varying the speed, forward/reverse and stop.

Features

A. For turning and positioning workpieces in the sections of mechanical engineering, container building, plant construction and pipeline construction.

B. Welded, robust steel construction.

C. Adjustable rotating speed.

D. Large range center distance to match diffrent diameter of workpiecec

E. Compact and robust design, easy to operate.

Scope of Delivery

A. 1 Power and 1 Idler turning rolls

B. 1 Electric control system

1 control panel

1 remote pendant

Main Technical Parameters

Model	Max. load	Workpieces dia.	Roller material	Roller dia.	Roller width	Rolling speed	Roller motor
HGK-2	2,000kg	Ø150-Ø2,000mm	Steel coated with PU	Ø200mm	80mm	6-60m/h	2x0.18kw
HGK-5	5,000kg	Ø250-Ø2,800mm	Steel coated with PU	Ø250mm	120mm	6-60m/h	2x0.37kw
HGK-10	10,000kg	Ø300-Ø3,200mm	Steel coated with PU	Ø300mm	130mm	6-60m/h	2x0.55kw
HGK-20	20,000kg	Ø500-Ø4,500mm	Steel coated with PU	Ø350mm	180mm	6-60m/h	2x1.1kw
HGK-40	40,000kg	Ø500-Ø5,000mm	Steel coated with PU	Ø400mm	220mm	6-60m/h	2x1.5kw
HGK-60	60,000kg	Ø500-Ø5,000mm	Steel coated with PU	Ø450mm	2x180mm	6-60m/h	2x2.2kw
HGK-80	80,000kg	Ø800-Ø6,000mm	Steel coated with PU	Ø450mm	2x180mm	6-60m/h	2x3kw
HGK-100	100,000kg	Ø800-Ø6,000mm	Steel coated with PU	Ø500mm	2x200mm	6-60m/h	2x3kw
HGK-160	160,000kg	Ø800-Ø6,000mm	Forging Steel 42CrMo	Ø550mm	200mm	6-60m/h	2x4kw
HGK-200	200,000kg	Ø800-Ø6,500mm	Forging Steel 42CrMo	Ø650mm	250mm	6-60m/h	2x4kw
HGK-250	250,000kg	Ø800-Ø6,500mm	Forging Steel 42CrMo	Ø650mm	250mm	6-60m/h	2x5.5kw
HGK-300	300,000kg	Ø800-Ø6,500mm	Forging Steel 42CrMo	Ø700mm	300mm	6-60m/h	2x5.5kw
HGK-500	500,000kg	Ø1,000-?8,000mm	Forging Steel 42CrMo	Ø750mm	350mm	6-60m/h	2x7.5kw
HGK-800	800,000kg	Ø1,000-?8,000mm	Forging Steel 42CrMo	Ø850mm	400mm	6-60m/h	2x11kw
HGK-1000	1,000,00kg	Ø1,000-Ø8,000mm	Forging Steel 42CrMo	Ø900mm	500mm	6-60m/h	2x15kw

Application

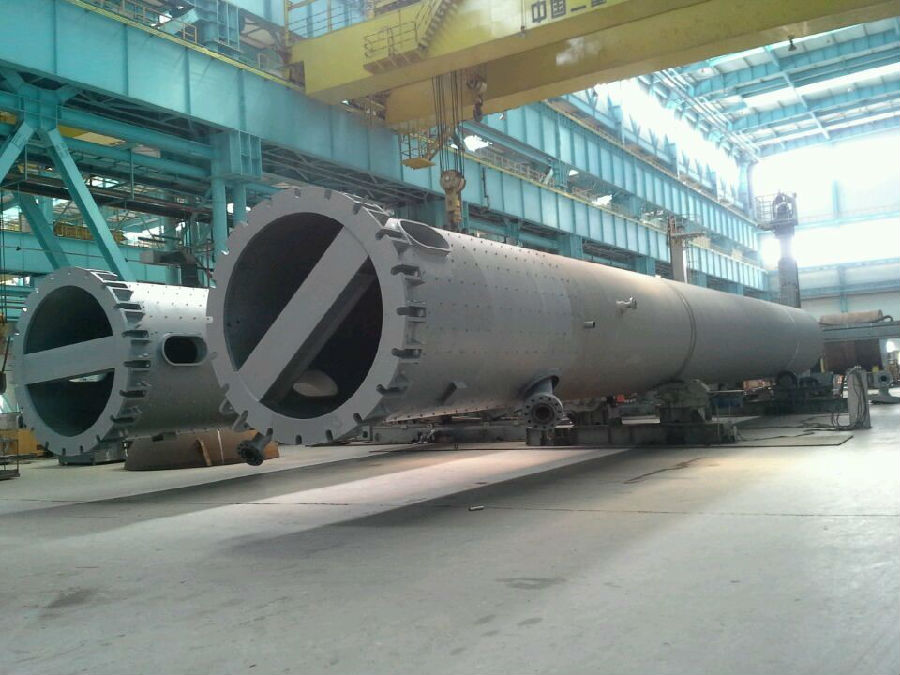

Welding: Essential in the welding of large pipes, tanks, and vessels, providing smooth and consistent rotation for accurate welds.

Assembly: Used in the assembly of large cylindrical components, ensuring precise alignment and positioning.

Inspection: Facilitate the inspection of large cylindrical parts by rotating them for thorough examination.

Coating and Painting: Provide consistent rotation for even application of coatings and paints on cylindrical surfaces.

Maintenance: Aid in the maintenance and repair of large cylindrical equipment by allowing easy access to different parts of the workpiece.
