Welding Oscillator - BD Series

Easy to handle and reliable. Signal input & output connector port to supply automatic welding. PLC control system provide a reliable environment MIG, MAG, TIG supply

OLIVTE is one of the top welding oscillator suppliers in China.

The welding oscillator controls the movement of the welding torch back and forth. By adjusting the oscillation speed, width, and pause time, it can reduce the number of weld seams and layers. This advanced welding oscillation system aims to maximize productivity and enhance welding quality in automated mechanized welding operations by minimizing welding defects such as inadequate penetration, incomplete fusion, overlap, and undercut.

What are Welding Oscillators?

Features

l Easy to handle and reliable.

l Signal input & output connector port to supply automatic welding.

l PLC control system provide a reliable environment

l MIG, MAG, TIG supply

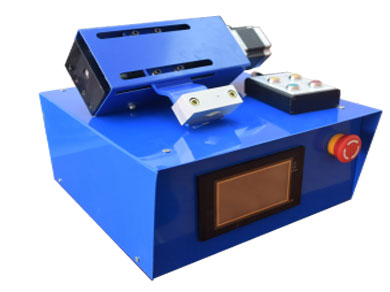

Welding Oscillator-BD Series

Scope of Delivery

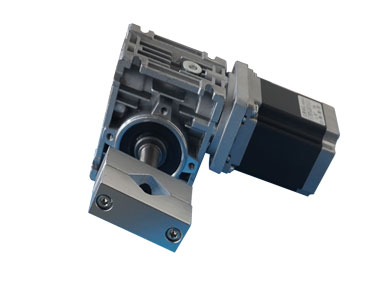

l Oscillator body: 1 pc

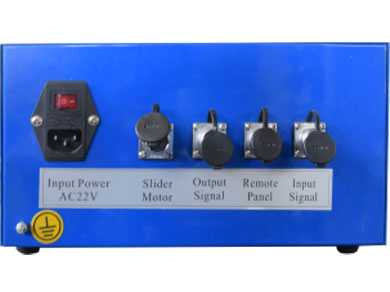

l Main controller: 1 pc

l Remote control: 1 pc

Main Technical Parameters

Model	BD-L	BD-Q
Program storage	10 group	10 group
Timing Duration	0-999.9S	0-999.9S
Swing Speed/ Angle	0-50mm/s	0-10 º /s
Swing range	±40mm	0-90 º
Dwell-time at left/mid/right	0-9.9S	0-9.9S
Weight	3.5kg	3.5kg
Load capacity	5kg	5kg
Input Voltage	1Ph 220-240v	1PH 220-240V

How Does a Welding Oscillator Work?
