Painting Blasting Rotator

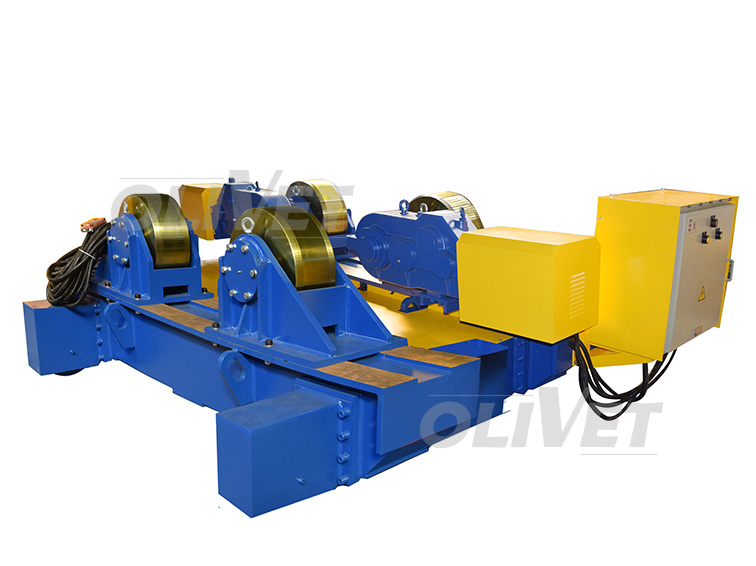

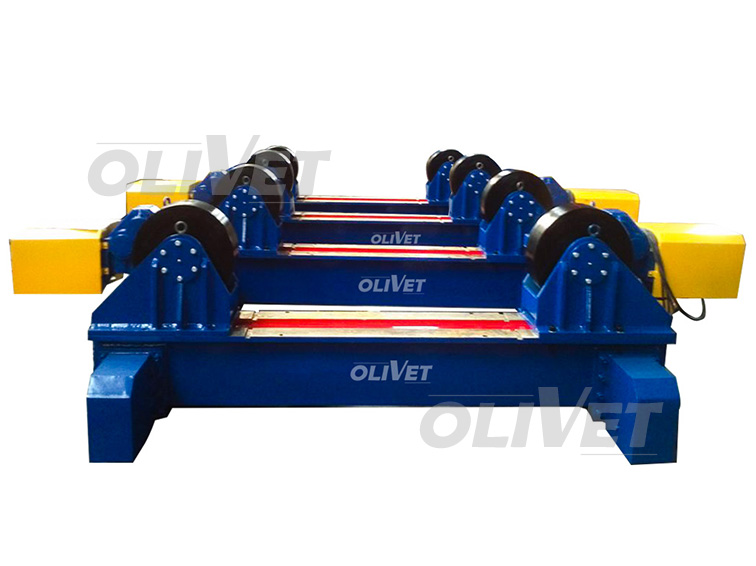

Painting & Blasting Rotator Turning Rolls - HGK Series

Stable Rotating Process

The HGK series Painting rotator and blasting rotator (adjustable turning rolls) has two synchronously operating drive units which arrange for a continuous rotation with frequency convension stepless speed controlling. A hand held, wireless control pendant provides the operator with full control of the rotator including a potentiometer for varying the speed, forward/reverse and stop. Explosion electrical system equipped to make sure a safe working situation.

Features

A. For turning and positioning vessel or tanks in the sections of chemical engineering, container building, petrochemical and pipeline construction.

B. Welded, robust steel construction.

C. Adjustable rotating speed.

D. Large range center distance to match diffrent diameter of workpiecec

E. Compact and robust design, easy to operate.

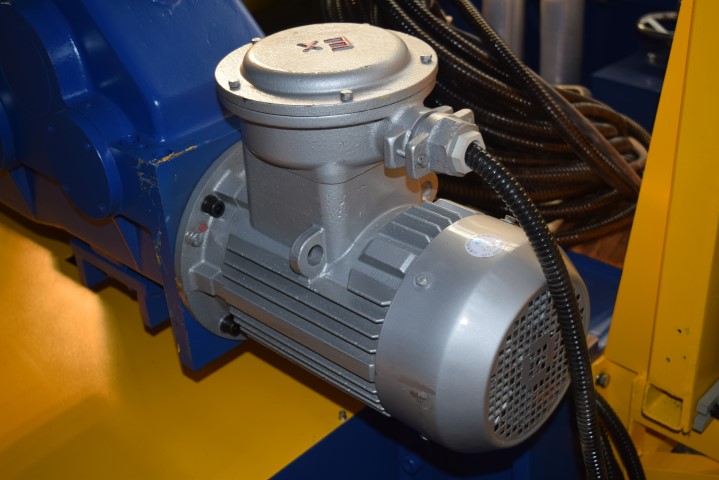

F. Explosion motors and control system

Scope of Delivery

A. 1 Power and 1 Idler turning rolls

B. 1 Electric control system

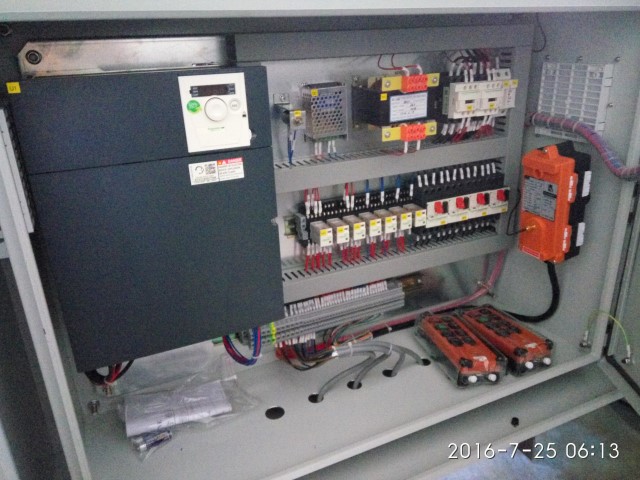

1 explosion control panel

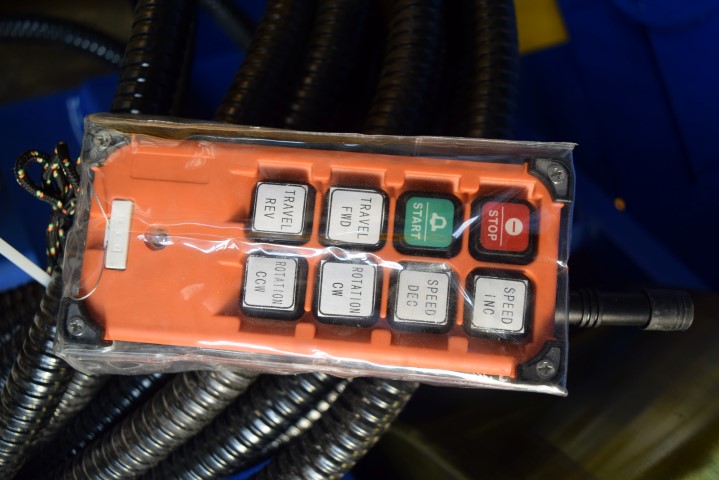

1 wireless remote pendant

DSC_0089 (Small).JPG DSC_0095 (Small).JPG IMG_20160725_061335 (Small).jpg

Main Technical Parameters

Model	Max. load	Workpieces dia.	Roller material	Roller dia.	Roller width	Rolling speed	Roller motor	Travelling motor
HGK-40	40,000kg	Ø500-Ø5,000mm	Pu Steel	Ø400mm	220mm 180mm	200-20000mm/min	2x1.5kw	2x0.75kw
HGK-60	60,000kg	Ø500-Ø5,000mm	Pu Steel	Ø450mm	2x180mm 200mm	200-20000mm/min	2x2.2kw	2x1.1kw
HGK-80	80,000kg	Ø800-Ø6,000mm	Pu Steel	Ø450mm	2x180mm 220mm	200-20000mm/min	2x3kw	2x1.5kw
HGK-100	100,000kg	Ø800-Ø6,000mm	Pu Steel	Ø500mm	2x200mm 220mm	200-20000mm/min	2x3kw	2x2.2kw

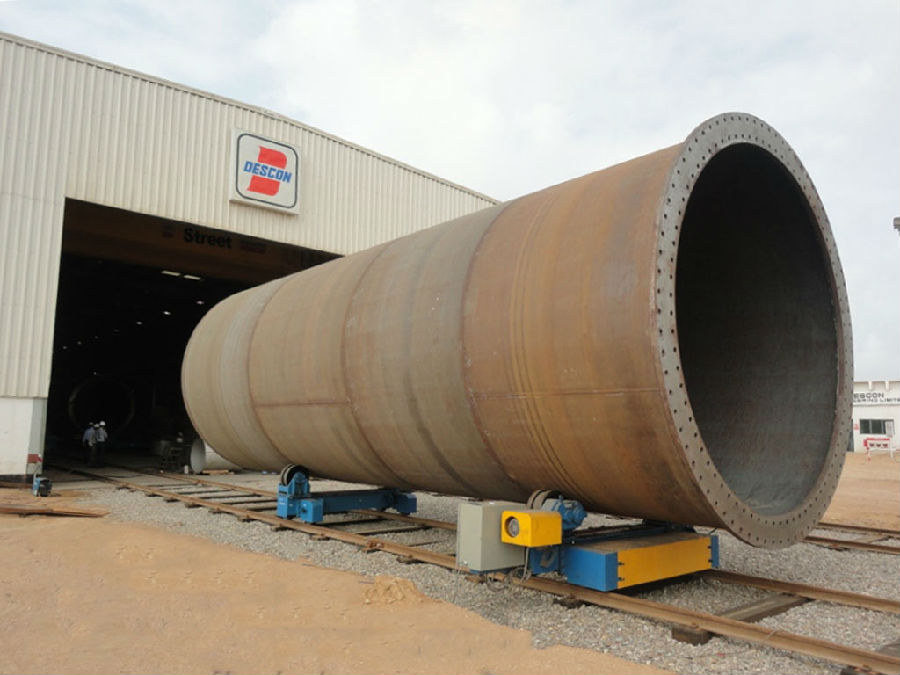

Application

BLASTING ROTATOR.jpg

Types of Blasting Media

Sand: Common for general cleaning and surface preparation.

Steel Shot/Grit: Used for heavy-duty applications requiring aggressive cleaning.

Glass Beads: Suitable for delicate surfaces and providing a smooth finish.

Aluminum Oxide: Effective for removing tough coatings and preparing surfaces for high-performance coatings.

Painting blasting rotator is a versatile and efficient tool for industries requiring high-quality surface preparation and coating applications. By integrating blasting and painting processes, it enhances productivity, ensures uniform coverage, and improves the durability of coatings. Proper maintenance and safety practices are essential to maximize the benefits and longevity of the equipment. If you have specific requirements or need further details on painting blasting rotators, feel free to ask!
