Ring Type Welding Positioner

Ring type Welding Positioner

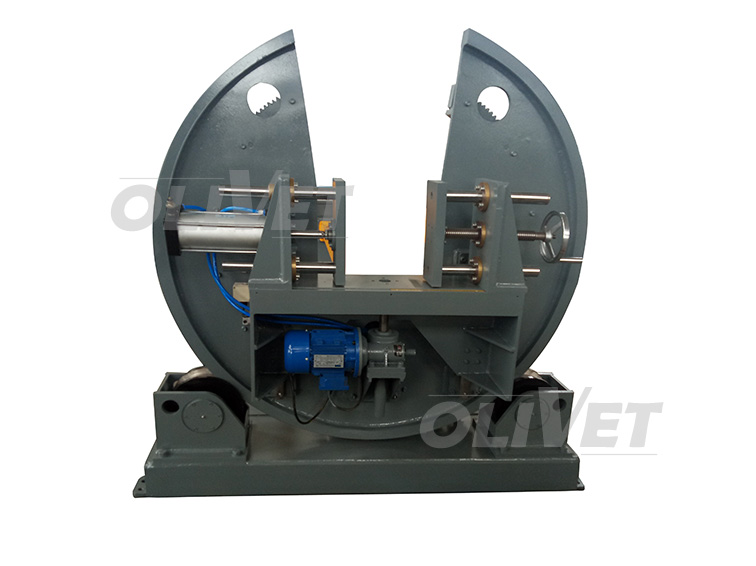

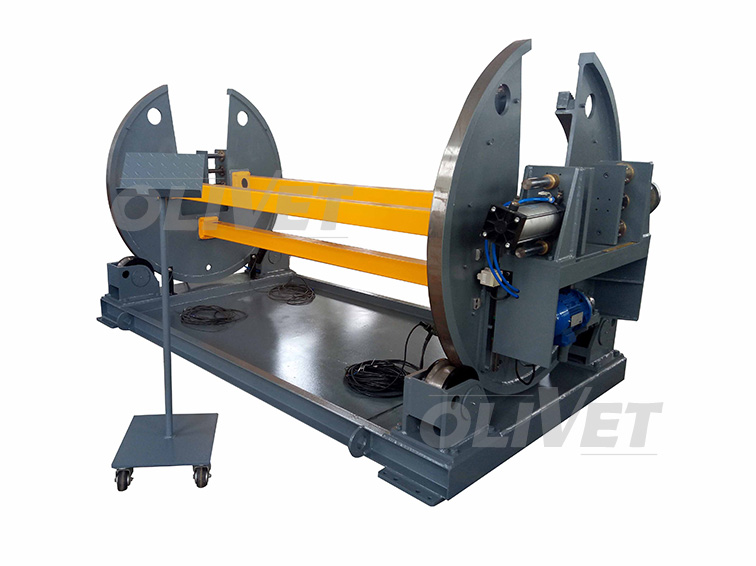

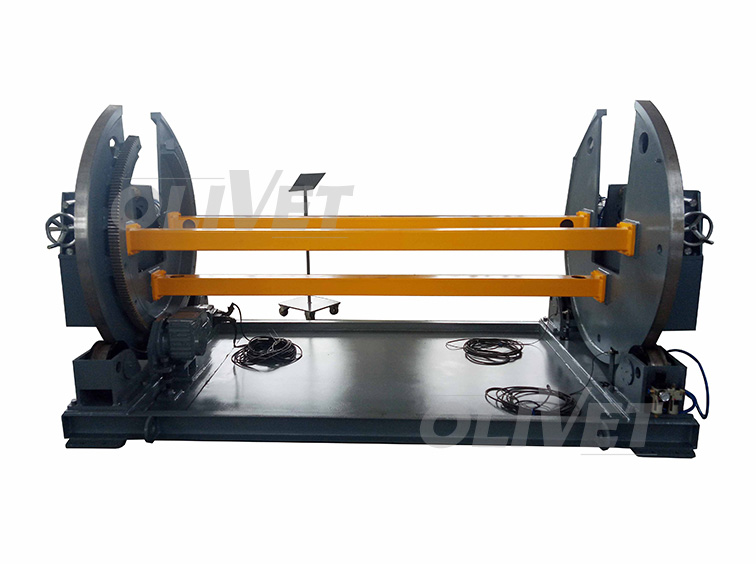

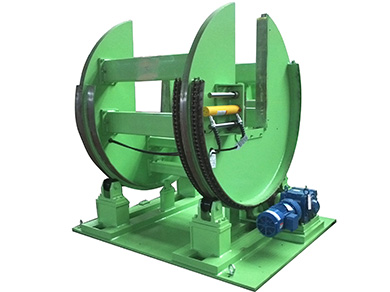

Ring type welding positioner is a specialized piece of equipment designed to rotate and position workpieces during welding operations. This type of positioner is particularly useful for welding circular objects like pipes, flanges, rings, and other cylindrical components.

Stable Rotating Process

Olivet company has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's positioners are with capacities ranging for 100 to 200,000kgs.

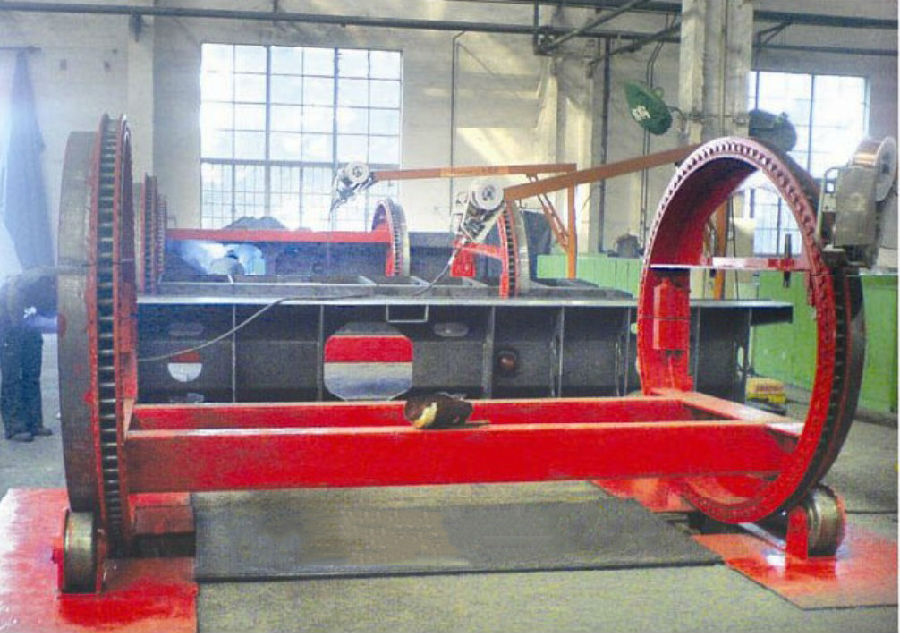

Ring-type welding positioner is specially designed, convenient for welding box beam and grider in mechanical engineering field.

Ring type welding positioners are the best solution to the problem of rotating and tilting demanding on long work pieces. Optional equipped with server motor precisely controlled by PLC, it can work with Robot manipulator

Scope of Delivery

A. 1 Main body

B. 1 Air-cyliner clamp system

C. 1 Electric control system

    1 control panel

    1 remote pendant

    1 foot switch

Main Technical Parameters

A. Loading capacity up to 10tons

B. ±60 degree rotation angle

C. Server motors and PLC accuracy control repeat positioning

D. Robot manipulator expansion connecting control.

Types of Welding

MIG/TIG Welding: Compatible with various welding processes, including MIG (Metal Inert Gas) and TIG (Tungsten Inert Gas) welding.

Submerged Arc Welding: Can be used with submerged arc welding (SAW) for high-deposition rate applications.

Plasma Welding: Suitable for precision welding applications using plasma welding techniques.

When looking for the best welding positioner, it's essential to consider factors such as welding positioner design and rotating welding positioner capabilities. A rotary welding positioner offers smooth rotation for precise welding, while a weld rotator ensures optimal positioning for various welding tasks. The best weld positioner combines quality and functionality, and a rotating positioner enhances versatility in welding applications.
