FIT Fit Up Station

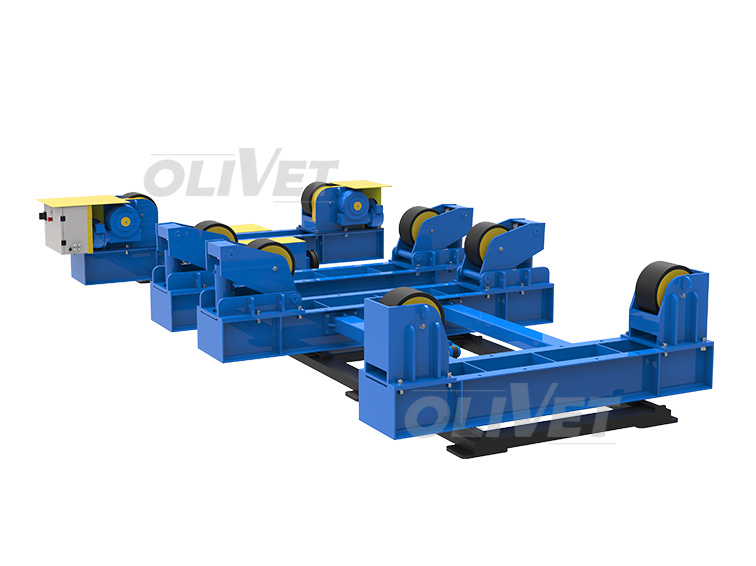

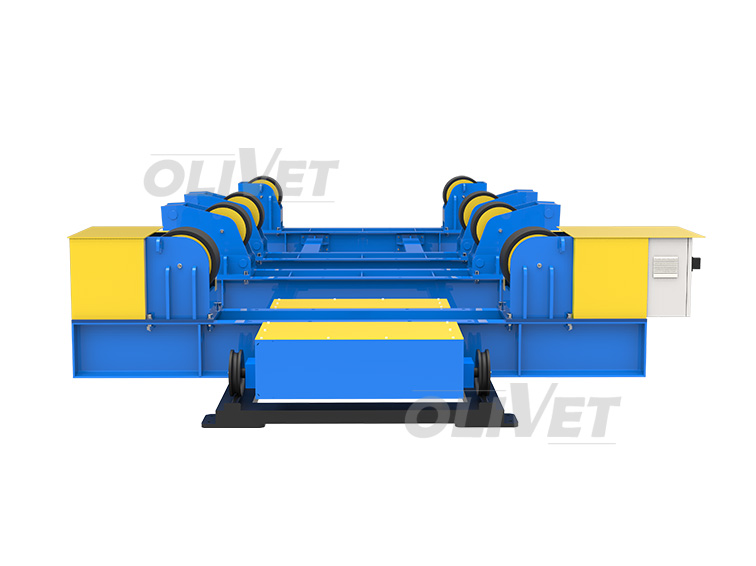

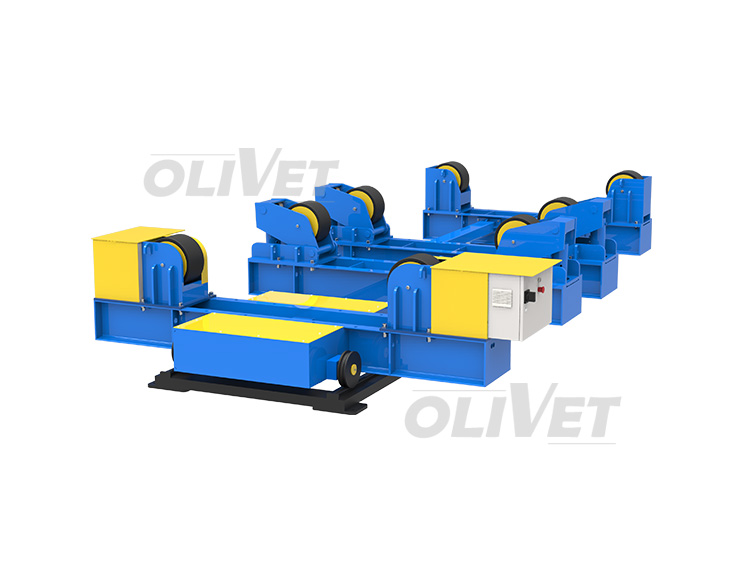

FIT series Fit UP Roller Bed Station is used for two or three pipes/ shells assembly and welding job. Fit fit up station is equipped with two fit-up roller beds, which have four independent hydraulic height adjustment rollers, to ensure the assembly and welding job speedy with a high performance.

Fit Up Roller Station - FIT Series

Stable Speedy Pipes Joining Process

FIT series Fit UP Roller Bed Station is used for two or three pipes/ shells assembly and welding job.

Fit fit up station is equipped with two fit-up roller beds, which have four independent hydraulic height adjustment rollers, to ensure the assembly and welding job speedy with a high performance.

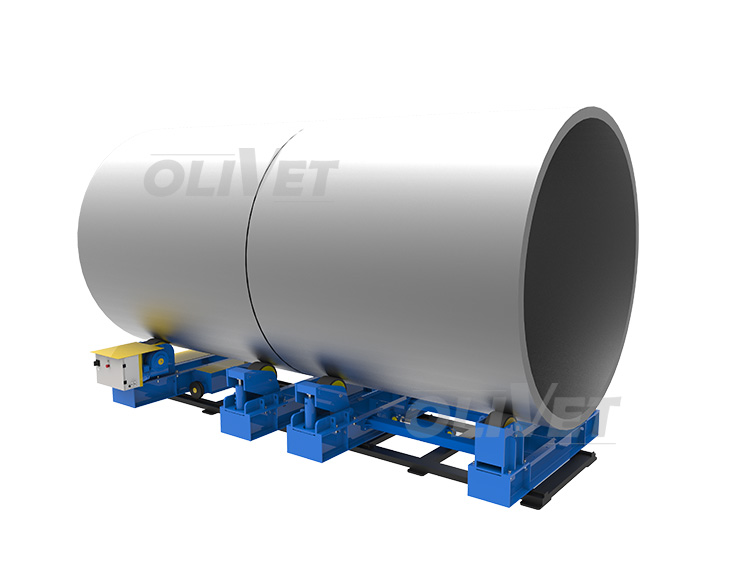

No extra rail tracks, the Fit up roller bed station allow easily to place various sites, inner of workshop or outdoor location.

Features

A. Designed and robustly built to withstand rugged work enviroments

B. Fastest system to assemble 1+1 or 1+1+1 sections

C. Four independent hydraulic adjusting roller to align the two sections with each other

D. Large range center distance to match diffrent diameter of workpiecec

E. European hydraulic station, Parker oil tube and Schneider elctrical control system

F. Ideal for:

- Wind tower fabrication

- Pressure vessels

- Pipe assembly

Scope of Delivery

A. 1 Power section, 1 Idler roller bed

B. 2 Fit up roller beds and hydrulic station

C. 1 Hydraulic

D. 1 Electric control system

1 Main control panel

1 Remote pendant

Main Technical Parameters

Model	FIT-30	FIT-40
Max loading capacity	30 tons	40 tons
Workpiece diameter	Ø800- Ø3500 mm	Ø800- Ø4500 mm
Rolling speed	100-1000 mm/min	100-1000 mm/min
Rolling motor power	2 X 1.5 kw	2 X 2.2 kw
Roller material	Polyurethane (PU)	Polyurethane (PU)
Hydraulic elevating adjusting stroke	150 mm	150 mm
Hydraulic horizontal adjusting	250mm	250mm
Power rotator moving speed	200-2000mm/min	200-2000mm/min

Our welding fit-up system is designed to streamline the assembly process for heavy industrial projects. It features a range of specialized equipment, including fit-up rotators, fit-up turning rolls, and fit-up bed rollers, all engineered for precision and durability. The system also includes vessel fit-up rollers and roller stations, which are ideal for handling large cylindrical structures. Whether you're working with fit-up rolls for smaller components or fit-up turning rolls for complex operations, our solutions provide reliable performance to meet your manufacturing needs.
