Welding Roller Frame Installation And Commissioning

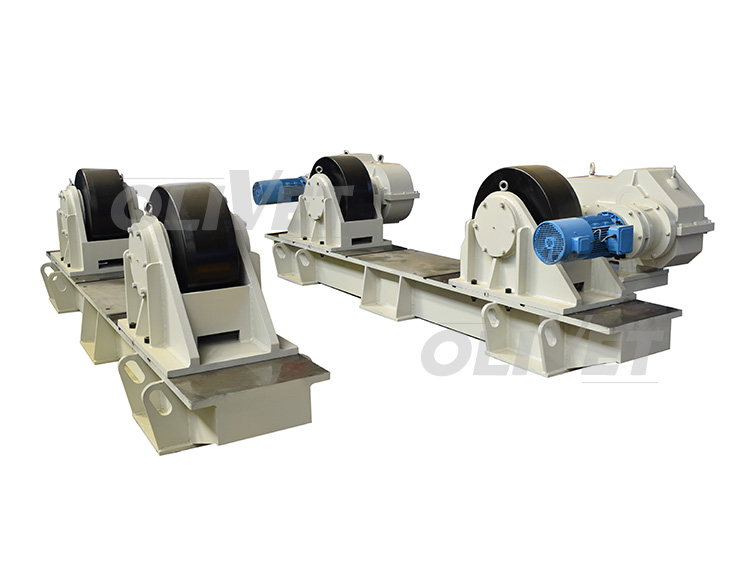

The installation and commissioning of the welding roller frame is a prerequisite for ensuring good performance and reliability, whatever 200T Capacity Adjustable Turning Rolls or 40T Capacity Adjustable Turning Rolls. The welding roller frame requires a mixed-soil foundation and the concrete layer is not less than 200 mm.

(1) Before the welding roller frame is installed, the foundation of the welding roller frame must be well prepared to ensure the normal curing period of the concrete and the installation position of the welding roller frame is ensured on the same horizontal line.

(2) When the welding roller frame is installed, according to the installation requirements of the general welding roller frame, the welding roller frame can be installed and fixed. It can be fixed by using expansion bolts (or fixed by a pressure plate). During the installation, the two sets of rollers must be placed in parallel with each other. It should be consistent, and to ensure the integrity of the welding roller frame parts.

(3) After the welding roller frame is installed, check whether the parts of the welding roller frame meet the assembly requirements, and ensure the normality of the electrical wiring of each part. Check and clean the periphery of the welding roller frame to ensure that there are no obstacles to the normal work of the welding roller frame.

(4) Initial operation: When starting the operation, there should be no abnormal noise and vibration phenomenon. If it is necessary to eliminate the malfunction, suspend the workpiece on the roller rack for a test run to observe whether the workpiece is in close contact with the roller. Is there a large axial direction? Rebound, otherwise adjust the position of the roller carriage.
